FLOPPYFlash™ FDD UPGRADE - CF & TCP/IP NETWORK VARIANT
The FLOPPYFlash(tm) drive can emulate any existing floppy drive, with SCSI, 34pin, 26pin, slim, custom interface.
The FLOPPYFlash(tm ) Drive has a long term history of advanced CF and network capabilities, combined with extreme reliability.
* True TCP/IP networking combined with CF through FLASH2GUI software. No additional software changes are required by the host. Primary Data storage is always written to the CF card.
Example emulations can be seen on the following products;
- 34pin, 26pin, slim FLOPPYFlash
- SCSI FLOPPY SCSIFlash
SCSIFLASH® HDD/OPTICAL/ZIP/JAZZ/TAPE UPGRADE
- 3.5" Range
- 50-PIN SCSI / 68-PIN SCSI / 80-PIN SCSI (8-Bit)
- 2.5" Range
- 50-PIN SCSI
- SASI, SCSI-1, SCSI-2 - CF & TCP/IP NETWORK

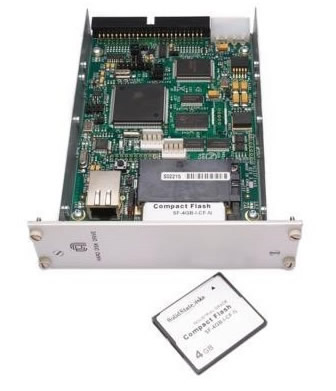

The SCSIFlash® Drive can emulate many SASI, SCSI-1, or SCSI-2 drives and ca be programmed to suit the specific host system requirements. The SCSIFLASH has a long term history of advanced SCSI emulation, to match the most demanding requirements of emulation on legacy systems. Combined industrial grade CF internal memory for extreme reliability and upcoming full network capability will ensure a modern solid state upgrade for all SCSI drives.
* 100,000 RW cycles - Industrial grade CF
* 17 years of nonstop safe usage at 0% error rate
* True TCP/IP networking combined with CF through FLASH2GUI software. No additional software changes are required by the host. Primary Data storage is always written to the CF card.
* The one and only original OEM CF2SCSI /SCSIFlash drive since 2008.
Example emulations can be seen on the following products;
- SCSIFLASH DISK DRIVE
- SCSIFLASH MAGNETO OPTIC FLOPPY DRIVE
- SCSIFLASH SYQUEST DRIVE
- SCSIFLASH ZIP/JAZZ DRIVE
RELIABILITY
- Emulators are fully accessible while production is running
- No more tool "freeze" caused by floppy, that may cause loss of wafer and long down time
COMBINED UPGRADE
Floppy / Removable drive & hard disk combined upgrade to get rid of any maintenance issue and improve log & recipes transfer
SERVICE
- Worldwide network of authorized installer
- We support direct training to learn installation, backup and system recovery
IDEFlash DRIVE - CF & TCP/IP NETWORK VARIANT
- Currently under product development - scheduled product release date Q4 2018
- Unique solution - will be the only network IDE Drive available in the market
Example RETROFITS & UPGRADES can be seen on the following products;
APPLIED MATERIALS
 Note image displayed is customers own customised AMAT HDD Tray.
|

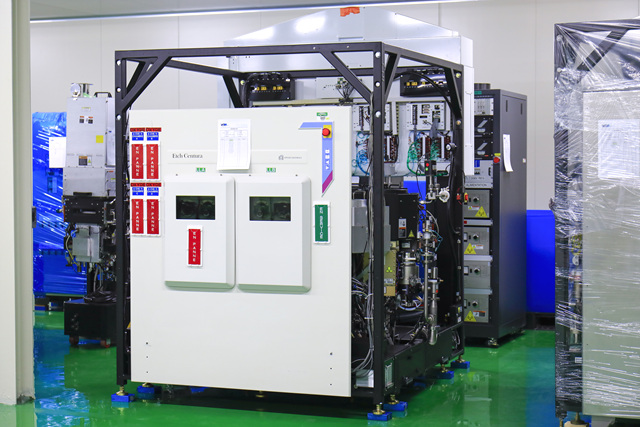

RETROFIT & UPGRADE ON APPLIED MATERIALS (P5000, P5200, P5500, RTP)
SCSI TO CF AND SCSI TO NETWORK FLOPPY DISK UPGRADE
- Tested and approved for full reset, cpu-only cold reset, full system reload, log & recipes transfer
- Multiple configurations for user mode (recipes only) and admin mode (system files)
- Fast & simplified memory erase for security.
- Easy access on CF subdirectories or on network subdirectories using FLASH2GUI proprietary software
SCSIFLASH HARD DISK UPGRADE
- Tested and approved for normal workload, full system reload
- Preformatted images for P5000, P5200, P5500, RTP available
- No more need to waste time in formatting hard disk, simplified system recovery
DUAL MODE EMULATION
- Two disk being emulated at the same time
- Write protect to ensure recipe protection
AMAT SCSIFLASH DISK DRIVE
AMAT SCSIFLASH FLOPPY DRIVE
AMAT SCSIFLASH SYQUEST DRIVE
AMAT SCSIFLASH ZIP/JAZZ DRIVE
|
LAM RESEARCH
 |

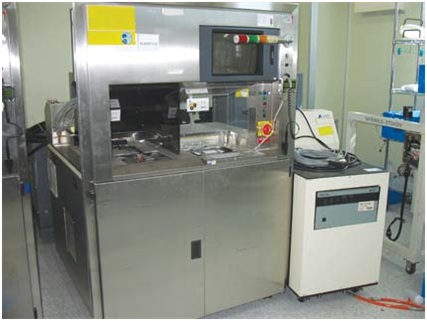

RETROFIT & UPGRADE ON LAM RESEARCH (CLASSIC, ENVISION)
CF AND NETWORK FLOPPY DISK UPGRADE
- Tested and approved for configurations & recipes transfer
- Multiple configurations for dual mode (config+recipes) on Classic tools
- Support for NextStep disks on Envision tools
- Fast & simplified memory erase for security
- Easy access on CF subdirectories or on network subdirectories
SIMPLIFIED BACKUP
- Main usage of floppy is for backup
- Auto-format and auto-increment help to speed up process
- Easy to create large backups, on many disks
NEXTSTEP EMULATION
- Full support of non-standard NextStep disks
- Preformatted image for empty floppy disk
|
TOKYO ELECTRON / TEL-FSI
|
|

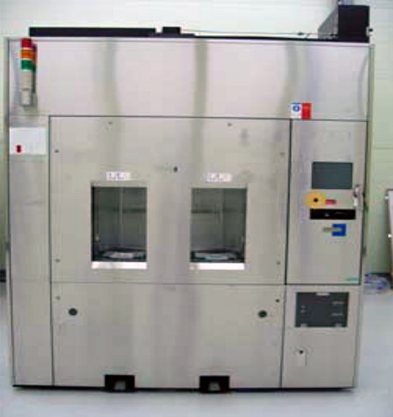

RETROFIT & UPGRADE ON TOKYO ELECTRON (UNITY) & TEL-FSI Polaris 2000 Series.
CF AND NETWORK FLOPPY DISK UPGRADE
- Tested and approved for backup & recipes transfer
- Multiple configurations for user mode (backup+recipes) and admin mode (system files)
SIMPLIFIED BACKUP
- Main usage of floppy is for backup Auto-format and auto-increment help to speed up process
- Easy to create large backups, on many disks
- Fast & simplified USB backup on multiple disks
- Fast & simplified memory erase for security
- Easy access on CF subdirectories or on network subdirectories
SCSIFlash-2 / CF2SCSI (SCSI Floppy Replacement for TEL-FSI Polaris)
Host System: FSI Polaris P2000/P2100
Application: Semiconductor
Make & Model: TEAC FD-235HF, attached with FC-1 SCSI PCB. CF preloaded with Cognex image
SCSIFlash-2 / CF2SCSI (2.5" SCSI HDD Replacement for TEL-FSI Polaris)
Host System: TEL-FSI Polaris P200 / P2200. Staubli CS7 M RX90 controller. Adept V+ Operating system. Example versions supported 11.2r4 and 11.4e3.
Application: Semiconductor
Make & Model:Fujitsu M2706SAM P/N CA01193-B140, MK2428FB or similar SCSI HDD (models may vary by tool)
IDEFlash (IDE HDD Replacement)
Host System: FSI Polaris P2000/P2100
Application: Semiconductor
Make & Model: 2.5” IDE (TBC)
SCSIFlash-2 / CF2SCSI (SCSI Tape Replacement for TEL-FSI Polaris)
Host System: FSI Polaris P2000/P2100
Application: Semiconductor
Make & Model: Tecmar 3800, Wang 3400DX or similar SCSI DDS-2 tape drive (models may vary by tool)
|
ASM
 |

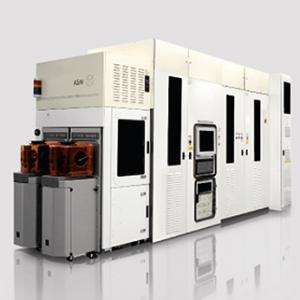

RETROFIT & UPGRADE ON ASM (EPI)
USB/NETWORK FLOPPY AND SCSIFLASH HDD UPGRADE
- Tested and approved for backup & recipes transfer
- Multiple configurations for OS9 disks (recipes) and shell mode disks (log files)
- Fast & simplified backup with OS9-to-Win conversion software
- Fast & simplified memory erase for security
- Easy access on CF subdirectories or on network subdirectories
ASM OFFICIAL REPLACEMENT
- Upgrade has been developed at specific ASM request
- Upgrade comes with official ASM usage & installation manual.
- Please contact OEM ASM directly for further product details.
|
PROBERS
 |

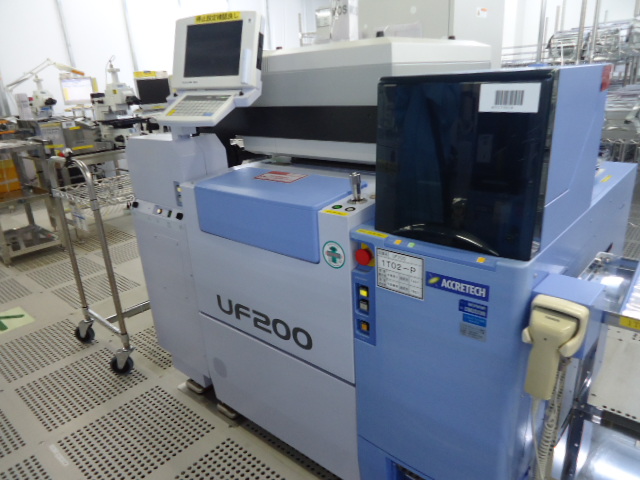

RETROFIT & UPGRADE ON PROBERS (TSK, KS,DISCO)
CF/NETWORK FLOPPY AND SCSIFLASH HDD and SCSI Removable drive ( ZIP/ JAZZ/ Magneto Optic upgrades
- All range of tools, related to semiconductor post-processing
- Probers, analysers, dicers, wire bonders...
- Advanced support for Japanese & non-standard tools
SERVICE
- Worldwide network of authorized installer
- You can even get directly training to learn installation, backup and system recovery
|
