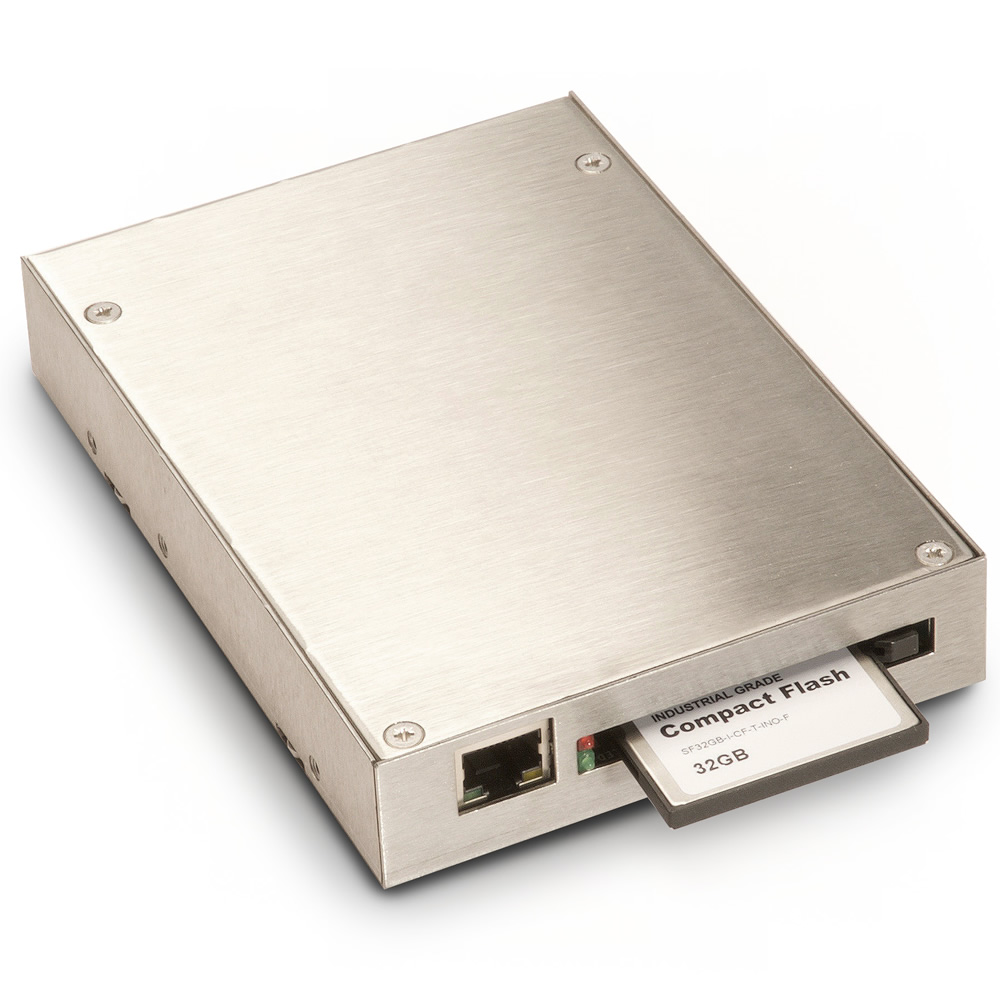

CF2SCSI / SCSIFLASH-MO, SCSI Magneto Optic Emulator to CF
The SCSI Emulator allows the CF Cards up to 64GB (SLC) and 256GB (MLC) to attach to the SCSI bus. It will be It will be seen as a SCSI Magneto Optic drive or SCSI MO Emulation for a Fujitsu drive by the host computer. The SCSI MO emulator can operate with many other Magneto Optic Drives and can be programmed to suit the host systems requirement.
 |
FLASH2GUI - Optional ethernet support for centralised backup & restore capability available removing the need to rotate media. Primary data storage is always written to the CF card. No software change to the host required.
More details on FLASH2GUI backup & restore software click here
Solid State Disks Ltd, design and manufacture the Solid State SCSI SCSIFlash™ drive
Features
- Small format PCB converts Compact Flash Media to appear as a SCSI Magneto Optic device on a Host’s SCSI bus
- 3.5” form factor PCB which will replace any 3.5” or 5 ¼” Magneto Optic drive
- Will fit in a 3.5” disk slot using the same mountings
- SCSI Host will typically see the device as a Magneto Optic drive of any emulation
- Board is low power, using 5V only, and has an optional add-on display and pushbutton user interface
- Microcode is field upgradable via integral serial port
- Optional integration support available if required
