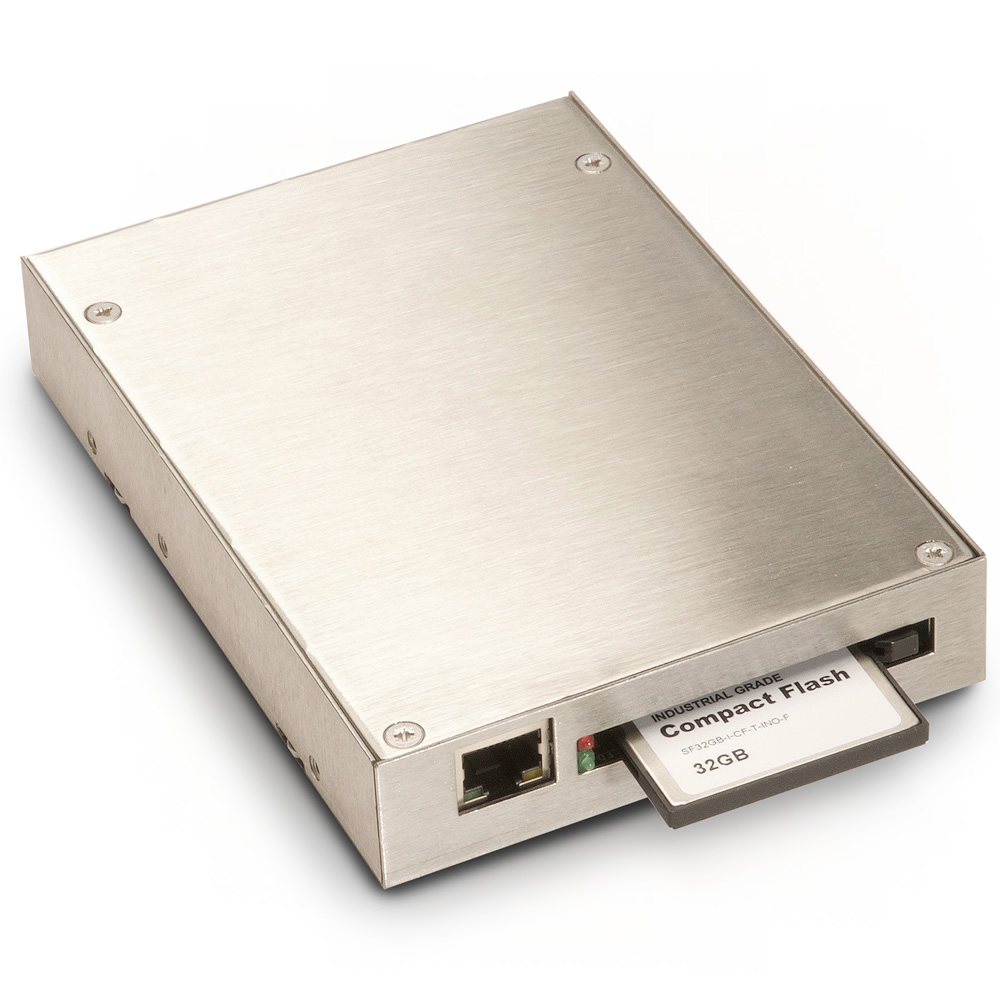

CF2SCSI / SCSIFLASH Olympus Emulator to CF
The CF2SCSI / SCSIFLASH Olympus emulator allows the CF Cards up to 64GB (SLC) and 256GB (MLC) to attach to the SCSI bus. It is seen as a Olympus Drive by the host computer.
 |
FLASH2GUI - Optional ethernet support for centralised backup & restore capability available removing the need to rotate media. Primary data storage is always written to the CF card. No software change to the host required.
More details on FLASH2GUI backup & restore software click here
Solid State Disks Ltd, design and manufacture the Solid State SCSI FLOPPYFlash™ drive
Features
- Small format PCB converts Compact Flash Media to appear as a Olympus Drive on a Host’s SCSI bus
- 3.5” form factor PCB which will replace any 3.5” or 5 ¼” Olympus Drive
- Will fit in a 3.5” disk slot using the same mountings
- SCSI Host will typically see the device as a Olympus Drive of any emulation
- Board is low power, using 5V only, and has an optional add-on display and push button user interface
- Microcode is field upgradable via integral serial port
- Optional integration support available if required
