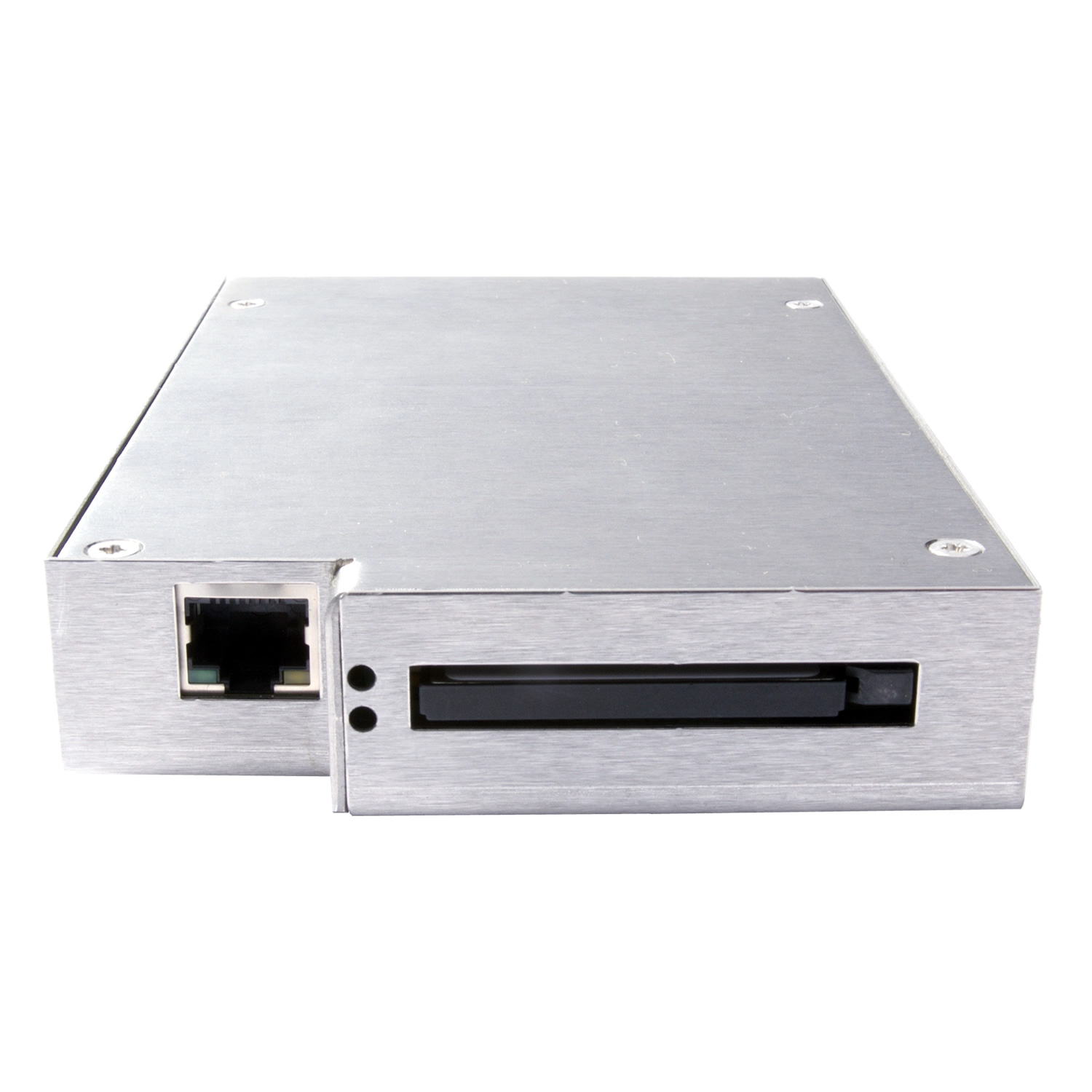

CF2SCSI / SCSIFLASH-1,2 50 pin RoseMount Formatted Disk Drive Emulator to CF
The CF2SCSI / SCSIFLASH 1,2 50 pin RoseMount Formatted Disk Drive Emulator replaces legacy storage disk drives. It operates with many SASI, SCSI-1, or SCSI-2 drives.
 |
|
| |
FLASH2GUI - Optional ethernet support for centralised backup & restore capability available removing the need to rotate media. Primary data storage is always written to the CF card. No software change to the host required.
More details on FLASH2GUI backup & restore software click here
Solid State Disks Ltd, design and manufacture the Solid State SCSI SCSIFlash™ drive
Features
The Rosemount RS3 SCSI controller has a single SCSI bus that is used to attach its disk (at ID5) and its Tape drive (ID4) at the ends of the bus. The Rosemount controller itself sits in the middle of the bus. Both the tape and disk units should therefore be SCSI terminated. The disk unit can be initialised through the peerway.
- Small format PCB converts Compact Flash Media to appear as a RoseMount Formatted Disk Drive on a Host’s SCSI bus
- 3.5” form factor PCB which will replace any 3.5” or 5 ¼” RoseMount Formatted Disk Drive
- Will fit in a 3.5” disk slot using the same mountings
- Allows the CF Cards up to 64GB (SLC) and 256GB (MLC) to attach to the SCSI bus.
- SCSI Host will typically see the device as a RoseMount Formatted Disk Drive of any emulation
- Board is low power, using 5V only, and has an optional add-on display and pushbutton user interface
- Microcode is field upgradable via integral serial port
- Optional integration support available if required
