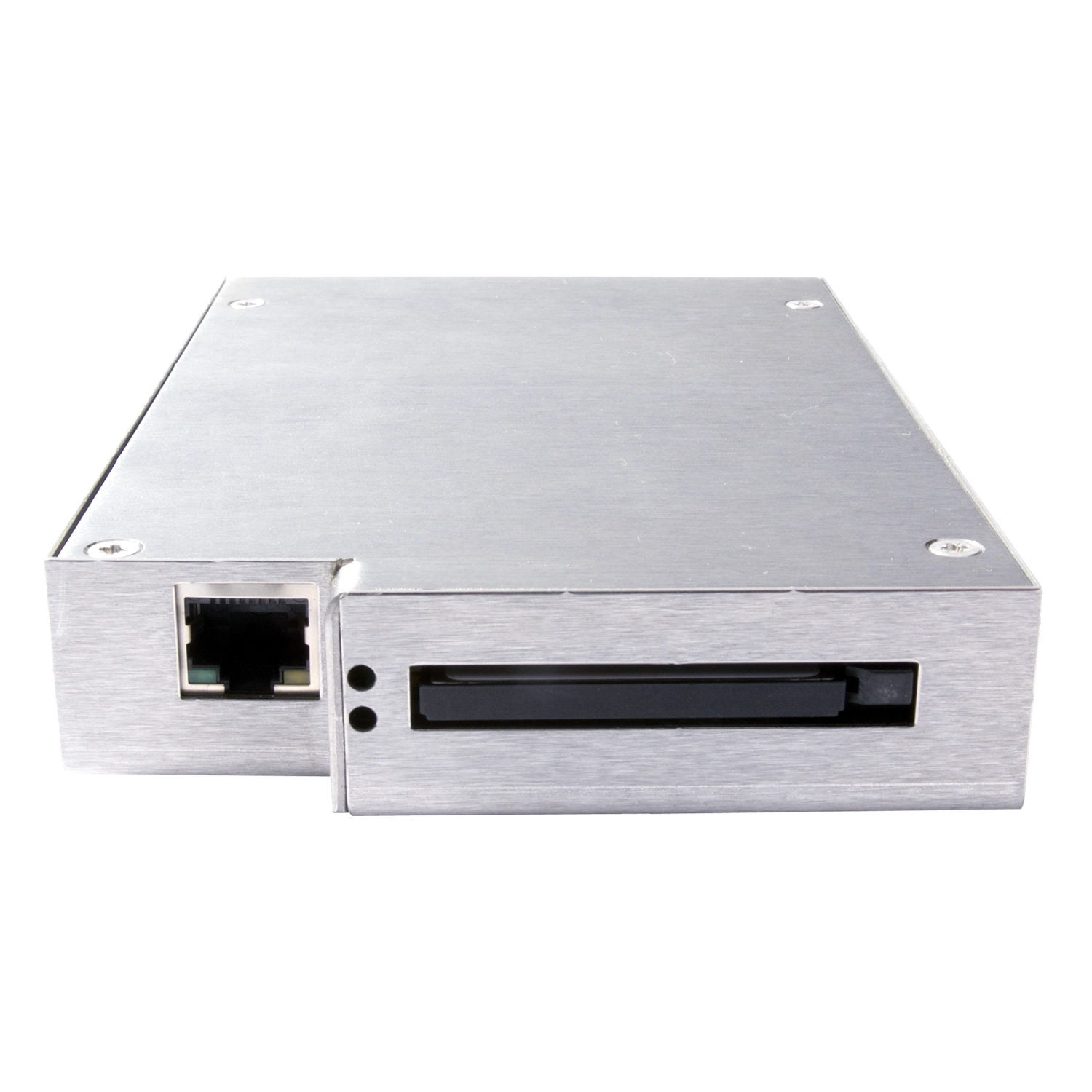

CF2SCSI / SCSIFLASH-DISK Newbury Data Disk Drive Emulator to CF
The CF2SCSI / SCSIFLASH Newbury Data Emulator replaces legacy storage disk drives and allows the CF Cards up to 64GB (SLC) and 256GB (MLC) to attach to the SCSI bus. The emulator operates with many SASI, SCSI-1, or SCSI-2 drives and can be programmed to emulate the host systems requirement.
 |
|
| |
FLASH2GUI - Optional ethernet support for centralised backup & restore capability available removing the need to rotate media. Primary data storage is always written to the CF card. No software change to the host required.
More details on FLASH2GUI backup & restore software click here
Solid State Disks Ltd, design and manufacture the Solid State SCSI SCSIFlash™ drive
Features
- Small format PCB converts Compact Flash Media to appear as a Newbury Data SCSI device on a Host’s SCSI bus
- 3.5” form factor PCB which will replace any 3.5” disk drive or larger drives with adaptor
- Will fit in a 3.5” disk slot using the same mountings
- SCSI Host will typically see the device as a Newbury Data disk drive of any emulation
- Board is low power, using 5V only, and has an optional add-on display and push button user interface
- Microcode is field upgradable via integral serial port
- Optional integration support available if required
