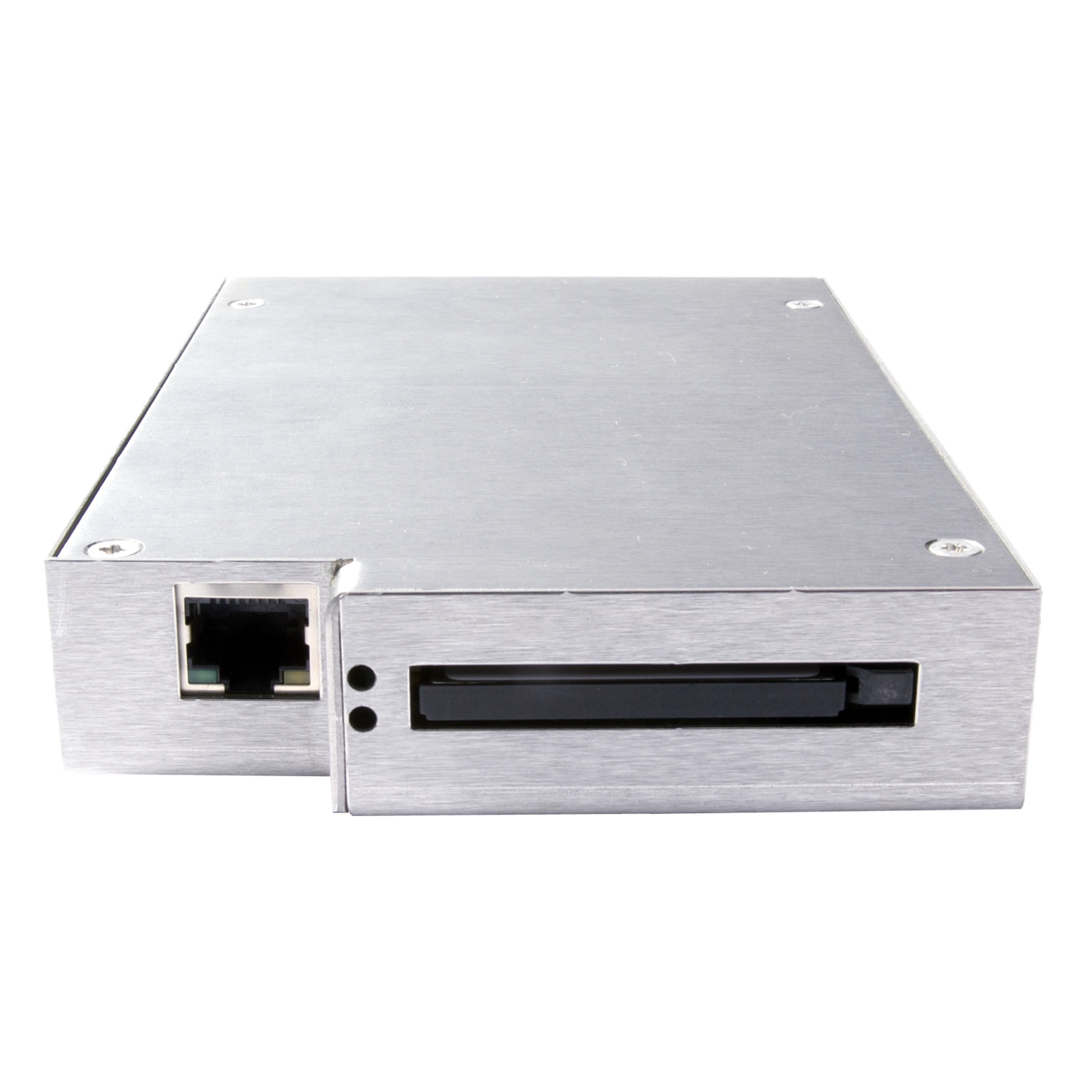

CF2SCSI / SCSIFLASH-OMTI / EXBEC emulator to CF
The CF2SCSI / SCSIFLASH OMTI / EXBEC Emulator replaces legacy storage disk drives. It operates with many SASI, SCSI-1, or SCSI-2 drives.
 |
|
| |
FLASH2GUI - Optional ethernet support for centralised backup & restore capability available removing the need to rotate media. Primary data storage is always written to the CF card. No software change to the host required.
More details on FLASH2GUI backup & restore software click here
Solid State Disks Ltd, design and manufacture the Solid State SCSI SCSIFlash™ drive
Features
• CF2SCSI / SCSIFLASH can emulate any disk or tape drive.
• Compact Flash Card can be removed and read into a Windows PC for analysis or backup purposes.
• 3.5 inch form factor
• Allows the CF Cards up to 64GB (SLC) and 256GB (MLC) to attach to the SCSI bus.
• Standard 50 pin SCSI1/2 interface
• 10 Mbytes/sec SCSI burst rate
• Internal active SCSI termination, disabled/enabled by jumper
• Optional HVD SCSI interface
• Compatible with most CF cards
• Various emulations available.- SCSI2/SCSI1 or SASI
• Can emulate a standard SCSI tape drive—DAT/DLT or 3490 etc – consult the factory
